| 详情说明: |
|
● RG21系列 材质：碳钢1008 steel
| Fastener Size |
Grip Range |
Hole Size |
PartNumber |
Fasteners perpod* |

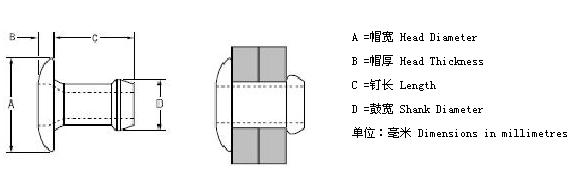

A |
B |
C |
D |
Shear
KN |
Tension
KN |
|
| 规格 |
铆接范围 |
铆接板孔径 |
产品编码 |
每串数 |
帽宽 |
帽厚（max) |
钉长(max) |
鼓宽(max) |
抗剪力 |
抗拉力 |
|
| 3.2 (1/8") |
0.5-1.5 |
3.25-3.35 |
RG213203 |
60 |
5.8-6.5 |
1 |
3.8 |
3.15 |
1.11 |
1.91 |
|
| 1-2.5 |
RG213204 |
50 |
4.3 |
|
| 2-3.5 |
RG213205 |
45 |
5.3 |
|
| 3-4.5 |
RG213206 |
38 |
6.3 |
|
| 4-5.5 |
RG213207 |
34 |
7.3 |
|
| 5-6.5 |
RG213208 |
32 |
8.3 |
|
| 6-7.5 |
RG213209 |
28 |
9.3 |
|
| 7-8.5 |
RG213210 |
24 |
10.3 |
|
| 4.0 (5/32") |
1.5-3.0 |
3.95-4.05 |
RG214005 |
50 |
7.6-8.3 |
1 |
5 |
3.9 |
1.61 |
2.81 |
|
| 2.1-3.5 |
RG214006 |
45 |
5.5 |
|
| 2.6-4.0 |
RG214007 |
40 |
6 |
|
| 3.6-5.0 |
RG214008 |
36 |
7 |
|
| 4.6-6.0 |
RG214009 |
32 |
8 |
|
| 5.6-7.0 |
RG214010 |
28 |
9 |
|
| 6.6-8.0 |
RG214011 |
24 |
10 |
|
| 7.6-9.0 |
RG214012 |
22 |
11 |
|
| 4.8 (3/16") |
1.6-3.3 |
4.85-4.95 |
RG214806 |
40 |
9.1-9.9 |
1.2 |
5.3 |
4.8 |
2.21 |
3.71 |
|
| 2.0-4.0 |
RG214807 |
36 |
6.1 |
|
| 3.6-5.3 |
RG214808 |
32 |
7.3 |
|
| 5-6.5 |
RG214809 |
28 |
8.6 |
|
| 6.2-7.8 |
RG214810 |
24 |
9.9 |
|
| 7.5-9.0 |
RG214811 |
22 |
11.2 |
|
| 8.8-10.3 |
RG214812 |
20 |
12.4 |
|
| 6.0 |
2.6-4.0 |
5.95-6.05 |
RG216007 |
35 |
11-11.8 |
1.3 |
7 |
5.9 |
2.51 |
4.21 |
|
| 3.6-5.0 |
RG216008 |
31 |
8 |
|
| 4.6-6.0 |
RG216009 |
28 |
9 |
|
| 5.6-7.0 |
RG216010 |
26 |
10 |
|
| 6.6-8.0 |
RG216011 |
24 |
11 |
|
| 7.6-9.0 |
RG216012 |
22 |
12 |
| |
|
|
|
