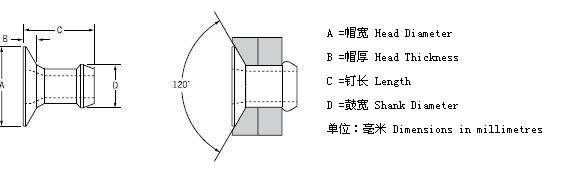

| Fastener Size | Grip Range | Hole Size | PartNumber | Fasteners perpod* | A | B | C | D | Shear KN | Tension KN |
| 规格 | 铆接范围 | 铆接板孔径 | 产品编码 | 每串数 | 帽宽 | 帽厚（max) | 钉长(max) | 鼓宽(max) | 抗剪力 | 抗拉力 |
| 3.2 (1/8") | 1.5-1.7 | 3.25-3.35 | RG123204 | 70 | 5.0-6.0 | 0.7 | 4.15 | 3.15 | 0.71 | 1.31 |
| 1.5-2.8 | RG123205 | 60 | 0.9 | 4.75 | ||||||
| 2.5-3.8 | RG123206 | 50 | 5.75 | |||||||
| 3.5-4.8 | RG123207 | 44 | 6.80 | |||||||
| 4.5-5.8 | RG123208 | 38 | 7.80 | |||||||
| 5.5-6.8 | RG123209 | 33 | 8.80 | |||||||
| 4.0 (5/32") | 1.5-3.0 | 3.95-4.05 | RG124005 | 59 | 6.0-7.0 | 1.05 | 5.15 | 3.90 | 1.11 | 1.71 |
| 2.2-3.5 | RG124006 | 54 | 5.65 | |||||||
| 2.7-4.0 | RG124007 | 49 | 6.15 | |||||||
| 3.7-5.0 | RG124008 | 42 | 7.15 | |||||||
| 4.7-6.0 | RG124009 | 36 | 8.15 | |||||||
| 5.7-7.0 | RG124010 | 32 | 9.20 |
