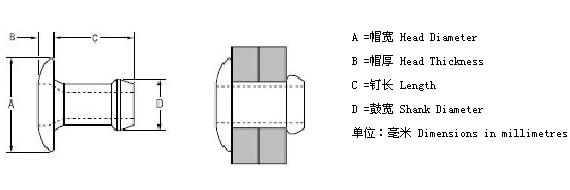

| Fastener Size | Grip Range | Hole Size | PartNumber | Fasteners perpod* | A | B | C | D | Shear KN | Tension KN |
| 规格 | 铆接范围 | 铆接板孔径 | 产品编码 | 每串数 | 帽宽 | 帽厚 | 钉长 | 鼓宽 | 抗剪力 | 抗拉力 |
| 2.4 | 1-2.5 | 2.35-2.45 | RG312404 | 60 | 3.7-4.2 | 0.9 | 4 | 2.33 | 0.41 | 0.81 |
| 2-3.5 | RG312405 | 50 | 5 | |||||||
| 3-4.5 | RG312406 | 40 | 6 | |||||||
| 4-5.5 | RG312407 | 36 | 7 | |||||||
| 5-6.5 | RG312408 | 32 | 8 | |||||||
| 6-7.5 | RG312409 | 28 | 9 | |||||||
| 3.2 (1/8") | 1-2.5 | 3.25-3.35 | RG313204 | 50 | 5.8-6.5 | 1 | 4.3 | 2.15 | 1.11 | 1.91 |
| 2-3.5 | RG313205 | 45 | 5.3 | |||||||
| 3-4.5 | RG313206 | 38 | 6.3 | |||||||
| 4-5.5 | RG313207 | 34 | 7.3 | |||||||
| 5-6.5 | RG313208 | 32 | 8.3 | |||||||
| 6-7.5 | RG313209 | 28 | 9.3 |
