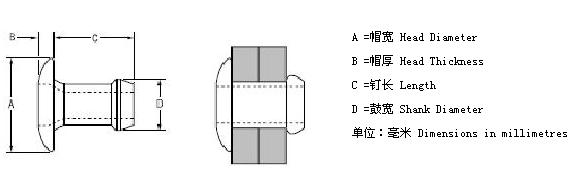

| Fastener Size | Grip Range | Hole Size | PartNumber | Fasteners perpod | A | B | C | D | Shear KN | Tension KN |
| 规格 | 铆接范围 | 铆接板孔径 | 产品编码 | 每串数 | 帽宽 | 帽厚（max) | 钉长(max) | 鼓宽(max) | 抗剪力 | 抗拉力 |
| 3.2 (1/8") | 1-2.5 | 3.25-3.35 | RG413204 | 50 | 5.8-6.5 | 1 | 4.3 | 3.15 | 1.31 | 2.01 |
| 2-3.5 | RG413205 | 45 | 5.3 | |||||||
| 3-4.5 | RG413206 | 38 | 6.3 | |||||||
| 4-5.5 | RG413207 | 34 | 7.3 | |||||||
| 5-6.5 | RG413208 | 32 | 8.3 | |||||||
| 4.0 (5/32") | 1.5-3.0 | 3.95-4.05 | RG414005 | 52 | 7.6-8.3 | 1 | 5 | 3.9 | 2.41 | 3.51 |
| 2.1-3.5 | RG414006 | 45 | 5.5 | |||||||
| 2.6-4.0 | RG414007 | 44 | 6 | |||||||
| 3.6-5.0 | RG414008 | 38 | 7 | |||||||
| 4.6-6.0 | RG414009 | 34 | 8 | |||||||
| 5.6-7.0 | RG414010 | 30 | 9 | |||||||
| 4.8 (3/16") | 2.0-4.0 | 4.85-4.95 | RG414806 | 42 | 9.1-9.9 | 1.2 | 5.3 | 4.8 | 3.51 | 5.11 |
| 3.6-5.3 | RG414807 | 35 | 6.1 | |||||||
| 4.3-5.8 | RG414808 | 32 | 7.3 | |||||||
| 5-6.5 | RG414809 | 31 | 8.6 | |||||||
| 6.2-7.8 | RG414810 | 27 | 9.9 | |||||||
| 7.5-9.0 | RG414811 | 24 | 11 |
