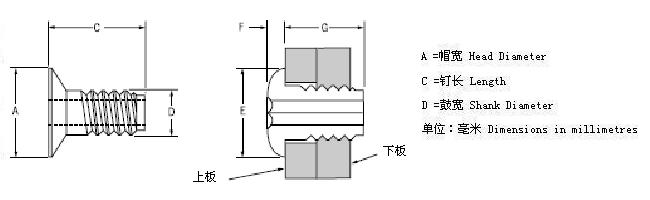

| Fastener Size | 上 板 | 下 板 | A | C | D | Fasteners perpod* | PartNumber | ||
| 规格 | min | max | min | max | 帽宽 | 钉长(max) | 鼓宽(max) | 每串数 | 产品编码 |
| 2.8 | 2.9 | 3 | 2.6 | 2.7 | 5.5-6.0 | 5.1 | 2.58 | 55 | RL222806 |
| 6.1 | 45 | RL222807 | |||||||
| 7.1 | 40 | RL222808 | |||||||
| 8.1 | 35 | RL222809 | |||||||
| 10.1 | 28 | RL222810 | |||||||
| 3 | 3.05 | 3.15 | 2.8 | 2.9 | 5.5-6.0 | 5.1 | 2.78 | 55 | RL223006 |
| 6.1 | 45 | RL223007 | |||||||
| 7.1 | 40 | RL223008 | |||||||
| 8.1 | 35 | RL223009 | |||||||
| 10.1 | 28 | RL223010 | |||||||
| 3.5 | 3.5 | 3.6 | 3.1 | 3.2 | 5.5-6.0 | 5.1 | 3.08 | 55 | RL223506 |
| 6.1 | 45 | RL223507 | |||||||
| 7.1 | 40 | RL223508 | |||||||
| 8.1 | 35 | RL223509 | |||||||
| 10.1 | 28 | RL223510 | |||||||
| 4 | 4.2 | 4.3 | 3.6 | 3.7 | 5.8-6.3 | 5.1 | 3.58 | 55 | RL224006 |
| 6.1 | 45 | RL224007 | |||||||
| 7.1 | 40 | RL224008 | |||||||
| 8.1 | 35 | RL224009 | |||||||
| 10.1 | 28 | RL224010 | |||||||
