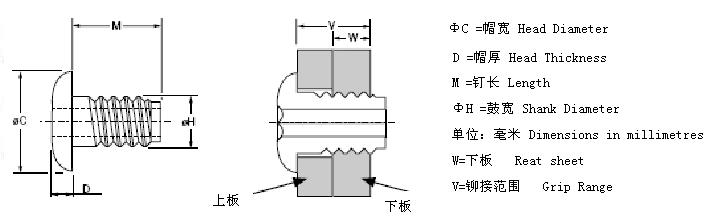

| Fastener Size | 上 板 | 下 板 | ΦC | M | ΦH | D | Fasteners perpod* | PartNumber | W | V | ||
| 规格 | min | max | min | max | 帽宽 | 钉长 | 鼓宽 | 帽厚 | 每串数 | 产品编码 | 下板 | 铆接范围 |
| 3 | 3.25 | 3.35 | 2.8 | 2.9 | 5.6-6.2 | 6.9 | 2.7-2.8 | 1.2 | 35 | RL213008 | 2.8 | 5.4 |
| 10.1 | 25 | RL213009 | 8.6 | |||||||||
| 13.2 | 20 | RL213010 | 11.8 | |||||||||
| 3.5 | 3.5 | 3.65 | 3.1 | 3.2 | 5.6-6.2 | 6.9 | 3.0-3.1 | 1.2 | 35 | RL213508 | 5.4 | |
| 10.1 | 25 | RL213509 | 8.6 | |||||||||
| 13.2 | 20 | RL213510 | 11.8 | |||||||||
| 4 | 4.05 | 4.2 | 3.4 | 3.5 | 7.5-8.1 | 6.9 | 3.3-3.4 | 1.2 | 35 | RL214008 | 3.05 | 5.4 |
| 10.1 | 25 | RL214009 | 8.6 | |||||||||
| 13.2 | 20 | RL214010 | 11.8 | |||||||||
| 4.5 | 4.9 | 5.05 | 4 | 4.1 | 7.5-8.1 | 6.9 | 3.9-4.0 | 1.2 | 35 | RL214508 | 5.4 | |
| 10.1 | 25 | RL214509 | 8.6 | |||||||||
| 13.2 | 20 | RL214510 | 11.8 | |||||||||
